Stainless Waterproof Door Access Control System Kit, 300kg/660lbs Force Electric Magnetic Door Lock Kit with RFID Keypad/Reader Home Security System 10 Keyfobs 110V Power Supply Metal Exit Button

Product description

Access Ccontrol System (Package Included)

1 x Access control keypad waterproof

1 x 660LBS electric magnetic lock

1 x Power supply control

1 x Metal Exit button

10 x Keyfobs

1 x English user manual

Access Control Keypad

The keyboard is made in a stainless steel case. completely waterproof.

Card Capacity: 1500

PIN Digits: 4-6 digits

Card Type: Standard ID Card 125 EM

Door Relay Time: 0-99 seconds, default 5 seconds

Card Reading Distance: Max. 6cm (2.36″)

Door Open Options (admin user selectable): Card Only / Password Only / Card + Password.

Operating Voltage: 12V DC

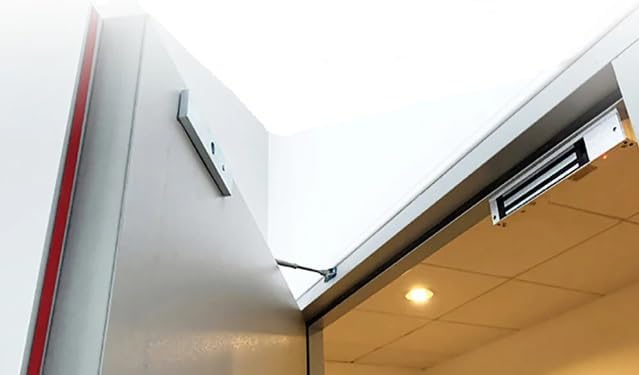

Electromagnetic lock 660lb/300Kg.

Cover Finish: Anodized aluminum

Lock Finish: Zinc

Armature Plate Finish: Zinc

Input Voltage: 12V DC

Current: 12V/550mA

Holding: 300kg / 660Lbs

Fail safe: Unlocked while power is removed (NC Mode)

Size (L x W x H): 250 x 49 x 25 (mm) / 9.84 x 1.93 x 0.98 (in)

Armature Plate Size (L x W x H): 180 x 38 x 11 (mm) / 7.09 x 1.50 x 0.43 (in)

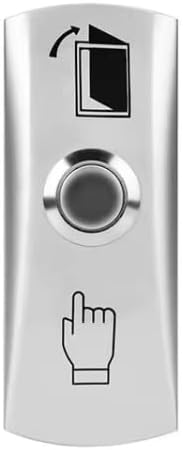

Exit button

Standard Structure: Alloy Plate, Steel Button

Panel Material: Alloy Plate, Sandblast Finished

Mechanical Life: > 500000 times

Output Contact: NO/COM

Current Contact: 3A@36V DC Max

Weight: 110g (0.24pounds)

Dimensions: 3.15 x 1.18 x 0.98inch (80x30x25mm)

Power Adapter

Type: 12V/2A Power Supply

Input: AC100V-240V 50/60Hz

Max Output: DC12V / 2A (2000mA)

Includes power connector

Caution

1) Do not fix the screw of the armature plate too tight as this will result in weak suction of the lock. Please loosen the screw a little bit.

2) Proper elasticity should be guaranteed for the rubber ring so that the armature plate can adjust itself to the appropriate position.

3) Please keep the surface of the lock clean, or the force will be reduced because of the dust, glue or scotch tape on it.

✅High-quality access kit is a reliable modern solution for providing access to a premises or territory; You can gain access using key fobs, as well as using a code that you can set yourself.
✅ The keyboard of this kit is made of stainless steel and has a high level of resistance to vandalism, and also withstands temperature fluctuations of -50°F +131°F. Fully sealed housing, operating humidity can reach 100%.
✅ Electromagnetic lock complete with a holding force of 300kg/660Lb, An excellent solution for installation both outdoors and indoors.
✅ The system also supports an optional doorbell connection (sold separately). You can also set the door opening time from 0 to 99 seconds.
✅ Kits from the VIP-SET brand have excellent instructions describing step-by-step setup and connection. To install the system, you will need a CAT-5 cable or any low current cable.
