Reversible Gear Motor, 24V 8mm Shaft Gear Motor High Torsion Speed Reduce Electric Motor for Curtain Machine Advertising Equipment Window Opener Smart Device (500RPM)

Product description

Features:

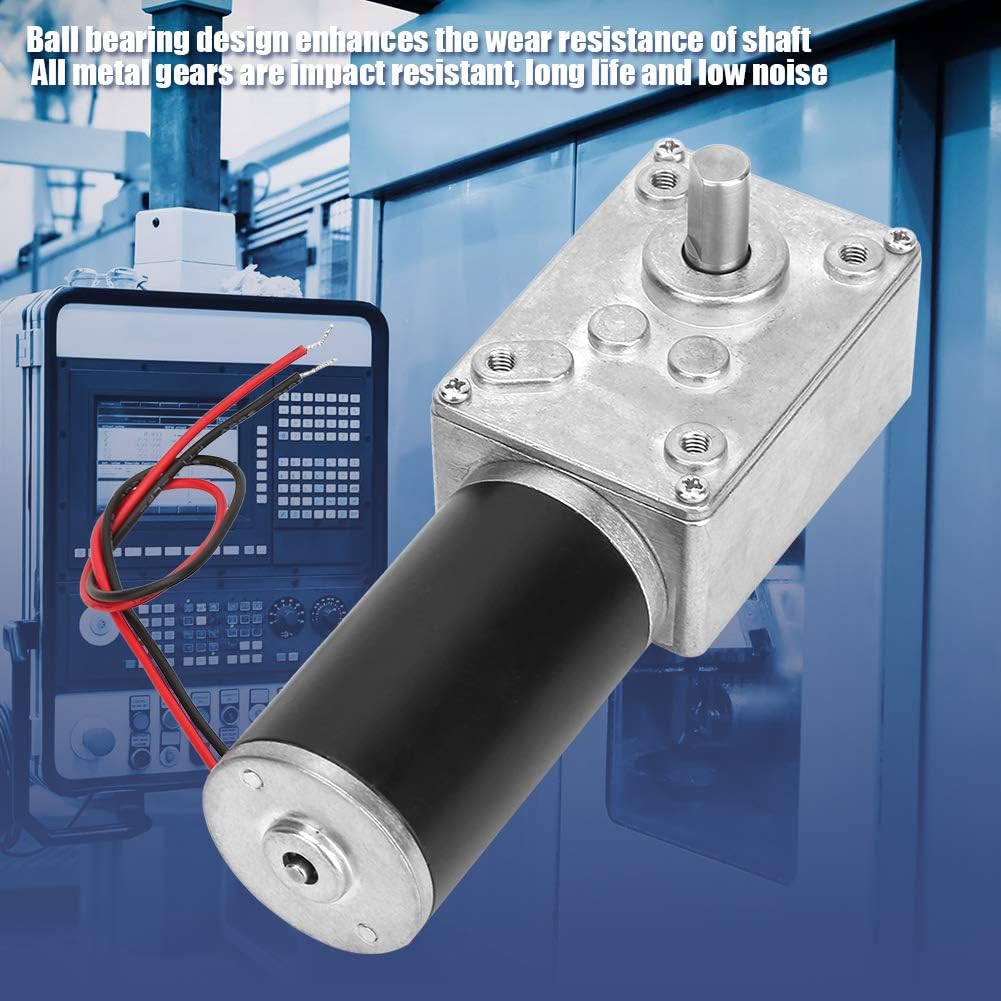

1. Made of high quality material, durable and long service life.2. 31mm high quality copper tube motor, small volume and big torsion3. Ball bearing design enhances the wear resistance of shaft4. All metal gears are impact resistant, long life and low noise5. Generally used in curtain machines, advertising equipment, window openers and smart devices

Instructions for Use:

1. The gear can withstand up to 70KG, it is forbidden to block, and it is easy to burn the motor after blocking for a long time.2. The motor has a self-locking function of power-off, and the positive and negative poles of the switching motor are controlled to reverse.

Specification:

Voltage: 24VOptional Style: 500RPM, 250RPM, 150RPM, 100RPM, 50RPM, 30RPM, 20RPM, 10RPMVoltage V 24 24 24 24 24 24 24 24Rated speed RPM 500 250 150 100 50 30 20 10Rated torsion Kg.cm 3.4 6.2 10 20 40 60 70 70Rated current A ≤1.6 ≤1.6 ≤1.6 ≤1.6 ≤1.6 ≤1.6 ≤1.6 ≤1.6Maximum torsion Kg.cm 10 18 30 60 70 70 70 70Stop current A 4.5 4.5 4.5 4.5 4.5 4.5 4.5 4.5

Package List:

1 * Worm Gear Motor

REVERSIBLE DESIGN: 31mm high quality copper tube motor, small volume and big torsion. With its reversible design, it can be used in both clockwise and counterclockwise directions, providing added versatility for your needs
TO USE: Made of high quality material, sturdy and , long service life and excellent performance,no need to change frequently, and worthy of your trust. Generally used in curtain machines, advertising equipment, window openers and smart devices
with 8MM SHAFT: Ball bearing design enhances the wear of shaft. Featuring a and compact design with an 8mm shaft, it offers a high torsion power that makes speed reduction effortless
LONG SERVICE LIFE: All metal gears are impact long life and low noise. Engineered for longevity, this gear motor boasts a long service life, ensuring that your machinery will operate smoothly and efficiently for years to come
WIDE APPLICATION: This high-quality 24V electric motor is the solution for industrial machinery, robotics, and other applications that require and powerful speed reduction
