Portable Fish Finder Handheld Sonar Depth Finder for Kayak Boat Ice and Shore Fishing 100m Range with Transducer Fishing Alarm Underwater Contour TL88

Product description

Specifications:

Measure Units: Meters / Feet Display: LCD Backlighting: LED sensor 4.6cm diameter Round transducer sensor Depth Range : maximum: 100m (328ft) ; Minimum: 0.9m (3ft) Sensor Beam Angle: 45 degrees Display Display the nature or circumstance of bottom of Sea (i.e. grass, rock and sand) Temperature Operating Temperature is from -10°C to 45°C (14°F to 113°F) Battery Battery: Uses 4*AAA batteries (Not included) Package List: 1*Fish Finder , 1*Instruction Manual , 1*Lanyard , 1*Fixing Screw , 1*Fixing Frame 1*Sensor

Note:

1. It will turn off automatically if the depth display reads “—” continuously for 5 minutes.2. The transmitter is waterproof, but the receiver (unit with screen) is not waterproof, so please do not or spray the fish finder screen with water.3. It can not be used to detect bait fish(motionless) or fish that is smaller than 10cm.4. When use this fish finder on moving boat, please make sure the moving speed is slowly (lower than 5 mph).5. Extremely cold weather will impact the performance of the product. It is suggested that you keep the unit in temperatures 0 degrees during .6. Strong waves, suspended matter and muddy water,will affect the performance.

How to use the Sonar Sensor:1. Toss the sensor and into the water;2. Attach the Side-Scan Adapter to the boat hull using the mounting tabs;3. Attach the sensor to a handle, lower the sensor into the water.

High Sensitive for Easy Adjustment: The sensitivity can be adjusted freely according to the depth of water
Fish Depth Finder: Detect and display water depth, approximate fish location, fish size, short & tall weeds, sand & rocks on seabed. Setting can be saved when turned off
Widely Applications for Fishing Area: Apply to lake, river, sea and other fishing environment. Depth range from 1M to 100m. NOTE: The depth is measured from the sonar sensor, not the
Provides Convenient Fishing Experience for You: Round transducer with 25 ft cable and removable transducer . Can be used for fishing off the dock, on a boat, and ice fishing

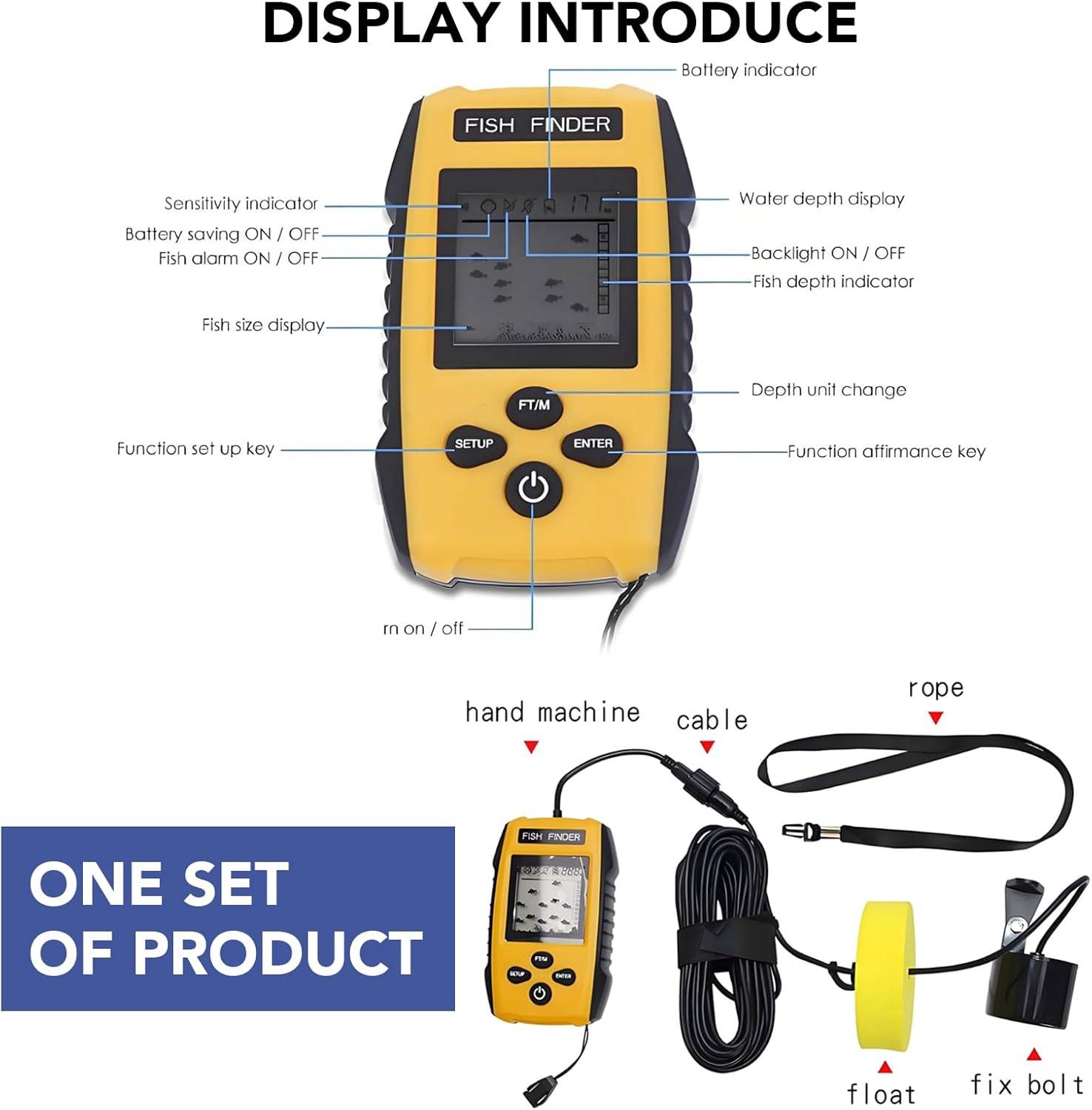

Variety Settings Meet Different Needs: 5 user select-able sensitivity; battery save mode; back-light mode; fish alarm; unit of measure. Water depth shows by meters/feet
